GENERAL

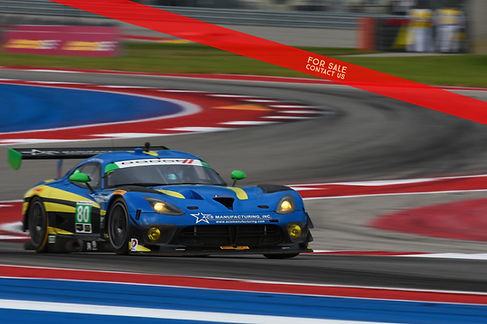

Vehicle Type:     Single-seat Grand Touring race car

Transmission:    Xtrac 427D 6-speed paddle shift

Clutch:                Multi-disc race clutch

Differential:       Mechanical ramp/plate-style

DIMENSIONS & CAPACITIES

Empty Weight:   1295 kg (2855 lbs.)

Weight Distribution:    (F/R)49/51

Wheelbase:        2504 mm (98.6 in.)

Track:                  (F/R)1741 mm/1716 mm (68.5 in/67.6 in.)

Length:               4540 mm (178.7 in.)

WidthBody:       2050 mm (80.7 in.)
Mirrors:              2068 mm (81.4 in.)

Height:               1160 mm (at 55 mm ride height)
                            45.7 in. (at 2.2 in. ride height)

Fuel Capacity:    110 L

Fuel Requirement:     E10 unleaded racing fuel

Body & Aerodynamics

Body panels Carbon Fiber/Kevlar/Fiberglass

Aerodynamic Package GTS-R-based body design
front dive planes
front splitter
fender louvers
adjustable rear wing
flat bottom
rear diffuser

ENGINE

Engine Type:     90-degree V-10 OHV; liquid cooled; odd firing

Engine Management: Coil near plug
                                       sequential multi-point port injection
                                       dual electronic throttle control

Engine Oil:         SystemDry sump

Displacement:  8383 cc/512 CID

Valve Gear:        2 pushrod-actuated overhead valves per cylinder with roller-type hydraulic lifters

Horsepower:     (SAE net)680 bhp/507 kW @ 6200 rpm (est, unrestricted)

Torque:               (SAE net)640 lb.-ft./868 N•m @ 5100 rpm (est, unrestricted

CHASSIS

Steering:     Hydraulic rack and pinion

Suspension:     Independent double wishbone front and rear
                           conventionally-mounted coil-over springs
                           crew-adjustable front and rear anti-roll bars
                           4-way adjustable dampers

Brakes:        380 mm front rotors with 6-piston calipers
                     330 mm rear rotors with 4-piston calipers
                     Floating master cylinders with driver-adjustable brake bias

Wheel:        TypeForged monoblock wheels standard

Tire Size:     (F/R)30/68-18 front / 31/71-18 rear

Features:    FIA homologated roll cage
                     pneumatic jack system
                     on-board fire suppression system
